How LED Signs Are Made: Complete Manufacturing Process

Introduction

LED signs have become the standard choice for businesses wanting bold, energy-efficient, always-on branding, but most buyers don't know what actually goes into making one. Understanding the manufacturing process helps you ask better questions, evaluate quotes accurately, and set realistic expectations for your project. This guide walks through exactly how LED signs are made, from initial design to the final tested product, including the specific materials used in LED neon-style signage.

Featured Snippet Answer

LED signs are made by cutting a base material, typically acrylic or metal, to shape, then installing an LED array or flexible LED neon tubing wired to a power supply and transformer. The design is digitized, the components are assembled and tested, and the finished sign is sealed and mounted. The full manufacturing process typically includes design, fabrication, wiring, and quality testing stages.

Why This Matters

Understanding how LED signs are manufactured helps buyers make informed decisions about design, budget, and long-term durability.

• Design planning: Knowing how LEDs are installed helps you design artwork that translates well into a lit sign.
• Budget clarity: Component quality and complexity directly affect both upfront cost and long-term energy efficiency.
• Lead time expectations: More complex builds with custom wiring or dimensional elements take longer to produce.
• Quality evaluation: Understanding the process helps buyers assess sample work and compare supplier quotes accurately.

What Are LED Signs

LED signs are illuminated signage that uses light-emitting diode technology, either as a backlighting array or as flexible neon-style tubing, to create bright, energy-efficient, always-visible branding.

• Core technology: Light-emitting diodes convert electricity into light with high efficiency and long operational life.
• Common formats: Backlit panels, edge-lit signs, and flexible LED neon-style tubing.
• Base materials: Typically acrylic, metal, or a combination housing the LED components.
• Common uses: Storefront branding, interior decor, trade show displays, and directional signage.

Business Insight: LED technology has largely replaced traditional glass neon in commercial signage due to lower energy consumption, longer lifespan, and reduced maintenance needs.

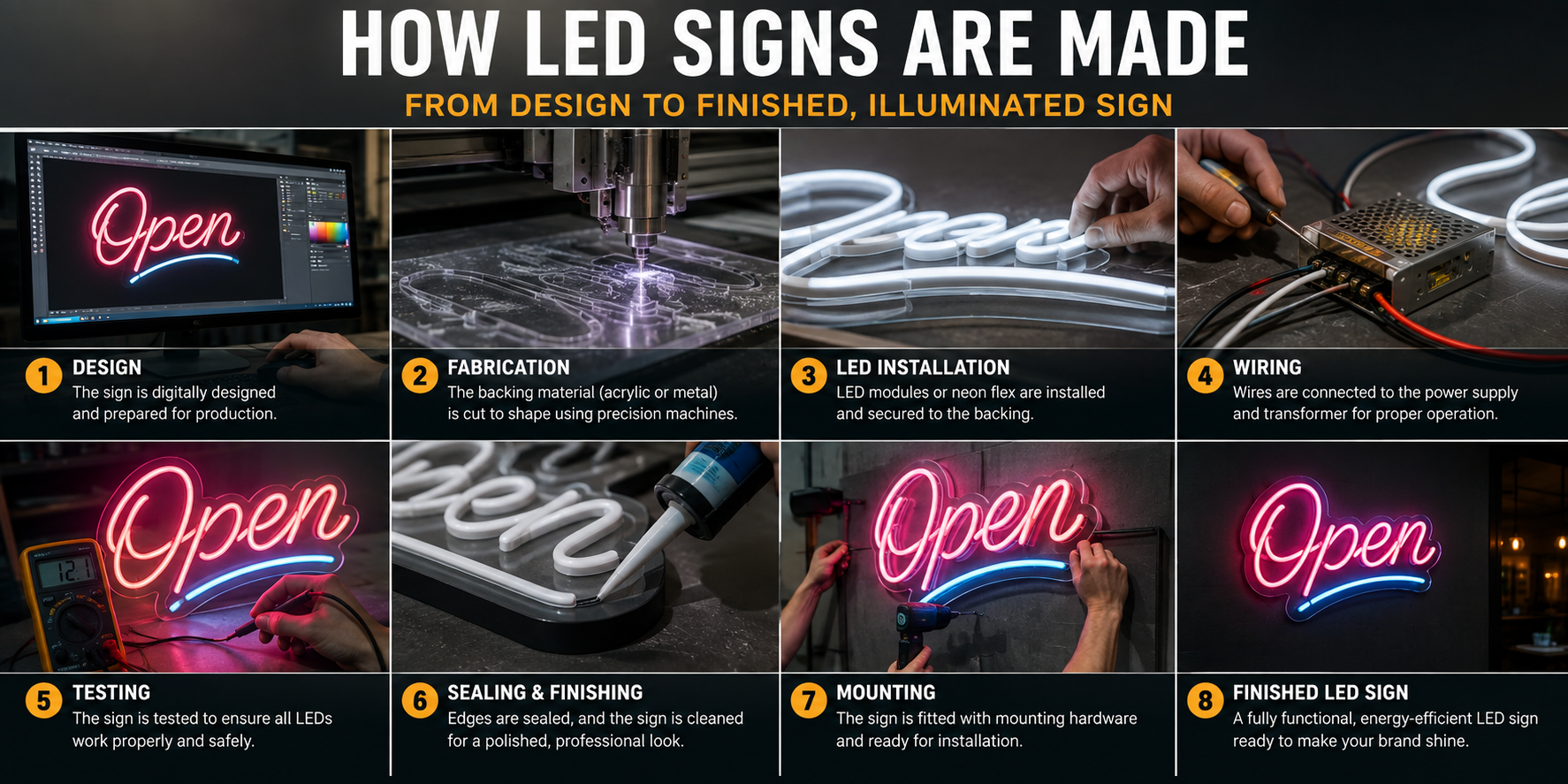

How LED Signs Are Made Step by Step

The LED sign manufacturing process follows a structured sequence from design through final testing and shipment.

• Step 1: Design and digitizing, The logo or design is converted into a vector file that guides both the base material cutting and LED layout.
• Step 2: Base material fabrication, Acrylic, metal, or another base material is cut to shape using a laser cutter, CNC router, or similar equipment.
• Step 3: LED layout planning, The LED array or neon tubing path is mapped out to ensure even light distribution across the design.
• Step 4: LED installation, LED modules or flexible neon-style tubing are installed according to the planned layout.
• Step 5: Wiring and power connection, LEDs are wired to a low-voltage power supply and transformer, with connections tested for consistency.
• Step 6: Housing and sealing, Components are secured within a protective housing, and outdoor signs receive weatherproof sealing.
• Step 7: Testing, The completed sign is powered on and checked for even illumination, color accuracy, and connection reliability.
• Step 8: Mounting hardware installation, Brackets, standoffs, or mounting plates are added based on the installation method.
• Step 9: Final quality inspection, The finished sign is inspected for build quality, illumination consistency, and overall finish before shipment.

Example: A simple backlit logo panel moves through fewer wiring steps than a custom LED neon-style sign with multiple color zones, which is why dimensional or multi-color LED neon designs generally take longer to produce.

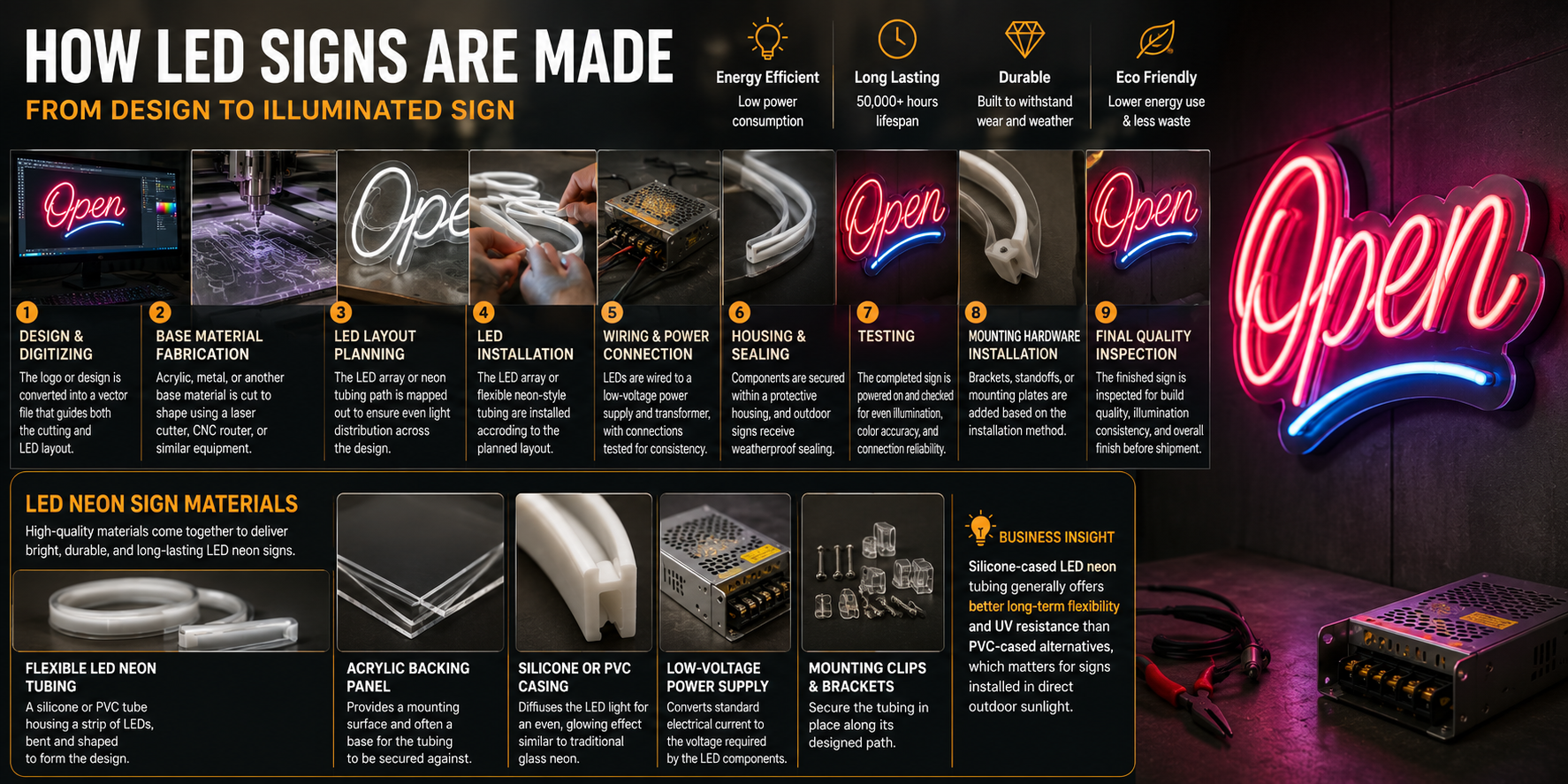

LED Neon Sign Materials

LED neon-style signs, designed to mimic the look of traditional glass neon, rely on a specific set of materials different from standard backlit acrylic signage.

• Flexible LED neon tubing: A silicone or PVC tube housing a strip of LEDs, bent and shaped to form the design.
• Acrylic backing panel: Provides a mounting surface and often a base for the tubing to be secured against.
• Silicone or PVC casing: Diffuses the LED light for an even, glowing effect similar to traditional glass neon.
• Low-voltage power supply: Converts standard electrical current to the voltage required by the LED components.
• Mounting clips and brackets: Secure the tubing in place along its designed path.

Business Insight: Silicone-cased LED neon tubing generally offers better long-term flexibility and UV resistance than PVC-cased alternatives, which matters for signs installed in direct outdoor sunlight.

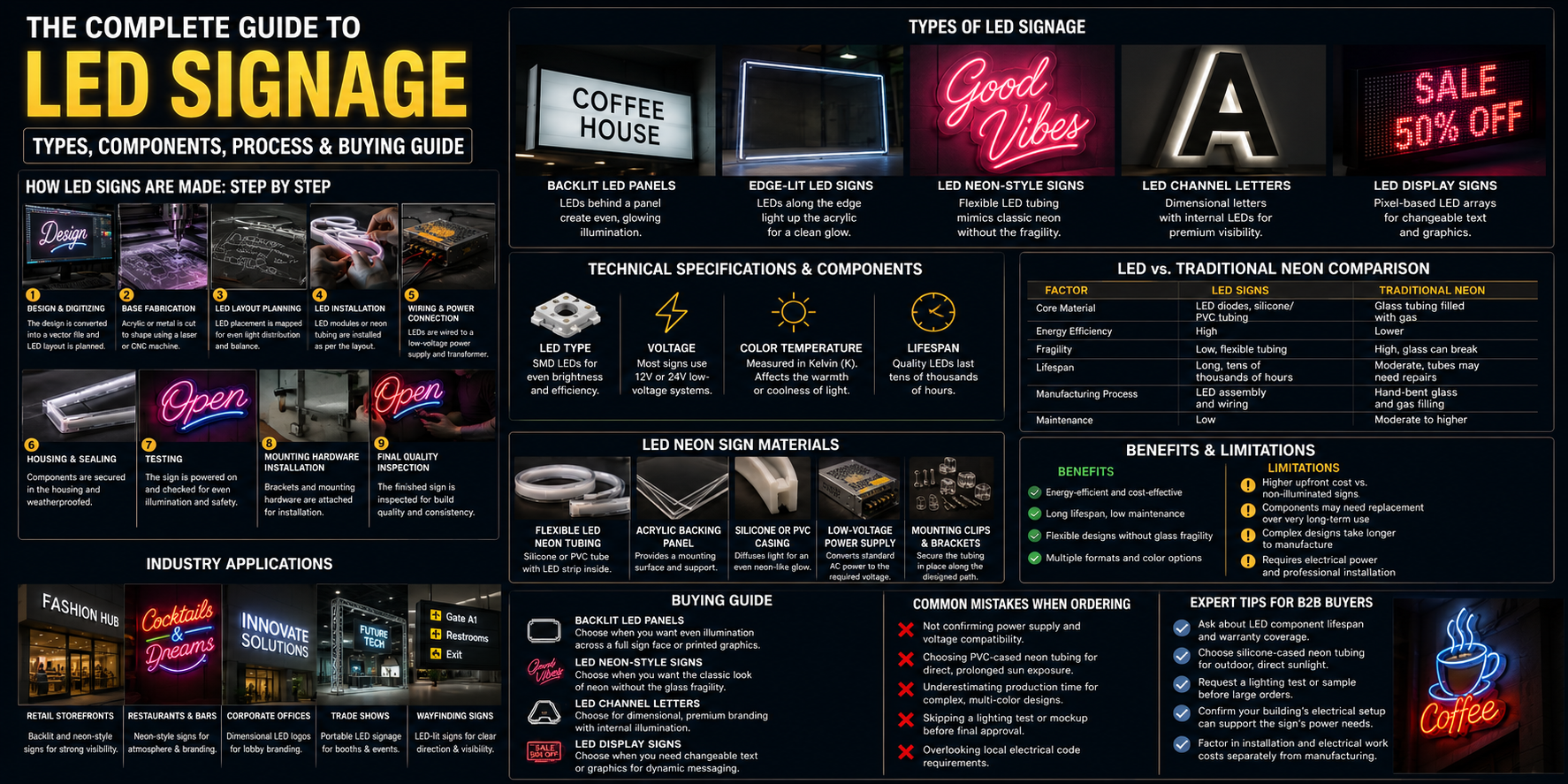

Types of LED Signage

• Backlit LED panels: LEDs installed behind an acrylic or printed panel for even, glowing illumination.
• Edge-lit LED signs: LEDs installed along the edge of an acrylic panel, with light diffusing through the material.
• LED neon-style signs: Flexible LED tubing shaped to mimic traditional glass neon lettering or designs.
• LED channel letters: Individual dimensional letters with internal LED illumination.
• LED display and digital signs: Pixel-based LED arrays capable of displaying changeable text or graphics.

Technical Specifications and Components

• LED type: SMD (surface-mount device) LEDs are commonly used for their compact size and even light output.
• Voltage: Most LED signage operates on low-voltage systems (typically 12V or 24V) stepped down from standard power.
• Color temperature: Measured in Kelvin, affecting whether the light appears warm white, cool white, or a specific color.
• Lifespan: Quality LED components are typically rated for tens of thousands of hours of operation under normal use.

LED vs. Traditional Neon Manufacturing Comparison Table

Benefits and Limitations

• Benefits:
  • Energy-efficient compared to traditional neon and incandescent lighting.
  • Long operational lifespan with minimal maintenance.
  • Flexible tubing options allow neon-style designs without glass fragility.
  • Wide range of formats, from backlit panels to dimensional channel letters.
• Limitations:
  • Upfront manufacturing cost can be higher than simple non-illuminated signage.
  • Components require occasional testing and replacement over very long-term use.
  • Complex multi-color or dimensional designs take longer to manufacture.
  • Requires access to electrical power and proper wiring during installation.

Industry Applications and Use Cases

• Retail storefronts: LED backlit and neon-style signs for strong nighttime visibility.
• Restaurants and bars: LED neon-style signage for atmosphere and branding.
• Corporate offices: LED-lit dimensional logos for lobby and reception branding.
• Trade shows: Portable LED signage for booth displays and temporary branding.
• Directional and wayfinding signs: LED-lit signage for consistent visibility in varied lighting conditions.

Buying Guide

• Choose backlit LED panels when:
  • You want even, glowing illumination across a full sign face.
  • Your design includes printed graphics or a logo needing consistent light distribution.
• Choose LED neon-style signage when:
  • You want the classic look of neon without the fragility of glass.
  • Your brand benefits from a bold, glowing aesthetic.
• Choose LED channel letters when:
  • You want dimensional, premium branding with internal illumination.
  • Your storefront has strong street-level visibility.
• Choose LED display signage when:
  • You need changeable text or graphics.
  • Your business requires frequently updated messaging.

Common Mistakes When Ordering LED Signs

• Mistake 1: Not confirming power supply and voltage compatibility before installation.
• Mistake 2: Choosing PVC-cased LED neon tubing for a sign that will face direct, prolonged sun exposure.
• Mistake 3: Underestimating manufacturing time for complex, multi-color LED neon designs.
• Mistake 4: Skipping a lighting test or mockup before finalizing a large sign order.
• Mistake 5: Overlooking local electrical code requirements for illuminated signage installation.

Expert Tips for B2B Buyers

• Tip 1: Ask your supplier about LED component lifespan and warranty coverage before ordering.
• Tip 2: Choose silicone-cased LED neon tubing for outdoor installations facing direct sunlight.
• Tip 3: Request a lighting test or sample before committing to a large, multi-color sign.
• Tip 4: Confirm your building's electrical setup can support the sign's power requirements.
• Tip 5: Factor in installation and electrical work costs separately from the sign's manufacturing cost.

Customization Options

• Color options: Single-color, multi-color, or color-changing LED configurations.
• Shape and design: Custom dimensional shapes, logos, and lettering.
• Mounting style: Wall-mounted, standoff-mounted, or window-mounted installations.
• Dimming and control: Some LED signage supports dimming or remote on/off control options.

Pricing Factors

• Sign size: Larger signs require more LED components and base material.
• Design complexity: Multi-color or dimensional designs increase both material and labor cost.
• LED quality: Higher-quality LED components typically cost more but offer longer lifespan.
• Installation: Electrical work and professional mounting add to the total project cost.

Maintenance

• Regular cleaning: Wipe down the sign's surface periodically to maintain brightness and appearance.
• Component checks: Periodically test for any dimming or flickering sections that may indicate a failing LED segment.
• Power supply inspection: Check transformer and wiring connections periodically, especially for outdoor installations.
• Weatherproofing checks: Inspect seals on outdoor signs annually to ensure continued protection from moisture.

Why Choose Fineyst Signs

• Full LED manufacturing capability: Backlit panels, edge-lit signs, LED neon-style tubing, and channel letters available.
• Quality component sourcing: Reliable LED materials built for long-term performance.
• Design and lighting mockup support: See your sign design before committing to production.
• Support for commercial and bulk orders: Consistent quality across multi-location signage projects.

FAQs

How are LED signs made?

LED signs are made by cutting a base material to shape, installing LED components or neon-style tubing, wiring them to a power supply, and testing the finished assembly.

What materials are used in LED neon signs?

LED neon signs typically use flexible LED tubing housed in silicone or PVC casing, mounted on an acrylic backing panel and connected to a low-voltage power supply.

How long does it take to manufacture an LED sign?

Production time depends on design complexity, with simple backlit panels generally completing faster than multi-color or dimensional LED neon designs.

Are LED signs more energy-efficient than traditional neon?

Yes, LED signage generally uses significantly less energy than traditional glass neon while offering a longer operational lifespan.

What voltage do LED signs typically use?

Most LED signage operates on low-voltage systems, commonly 12V or 24V, stepped down from standard electrical current through a power supply.

Is LED neon-style signage as durable as traditional glass neon?

LED neon-style tubing is generally more durable and less fragile than glass neon, since it doesn't carry the same breakage risk.

How long do LED signs typically last?

Quality LED components are often rated for tens of thousands of hours of use, translating to many years of typical operation.

Do LED signs require special installation?

Yes, LED signs require proper electrical connections and, in many cases, professional installation to ensure code compliance and safety.

Can LED signs be customized with multiple colors?

Yes, LED signage supports single-color, multi-color, and in some cases color-changing configurations depending on the design.

What maintenance do LED signs need?

LED signs generally require minimal maintenance, though periodic cleaning and occasional checks for dimming components or wiring issues are recommended.
